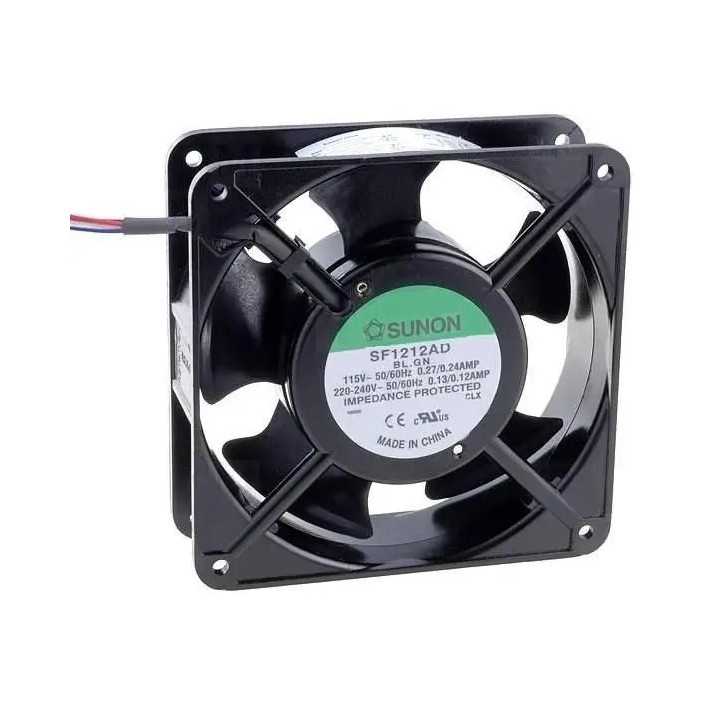

Ventilator AC axial 115/230VAC 120x120x38mm 195m3/h SUNON SF1212AD.BL.GN SF1212AD

Ventilator AC axial 115/230VAC 120x120x38mm 195m3/h SUNON SF1212AD.BL.GN SF1212AD.
Producator SUNON
Tip ventilator AC
Subtip ventilator axial

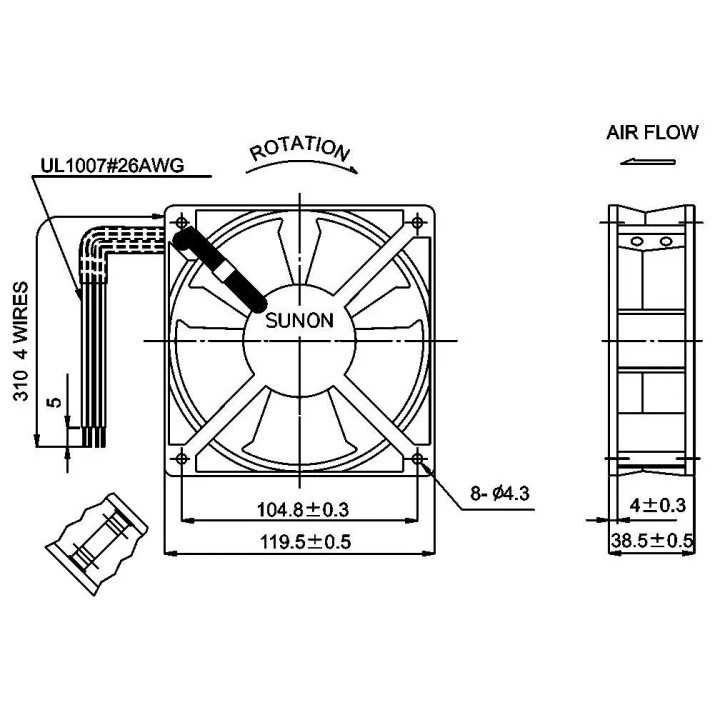

Dimensiune ventilator 120x120x38mm
Consum curent 19W
Curent nominal 0,24A
Randament ventilatoare 195m3/h (±10%)
Nivel zgomot 49dBA
Subtip lagar bila
Viteza de rotatie 3100rot./min
Toleranta consum curent si putere ±15%
Rezistenta izolatie min. 500MΩ
Material elice termoplast
Material carcasa aluminiu

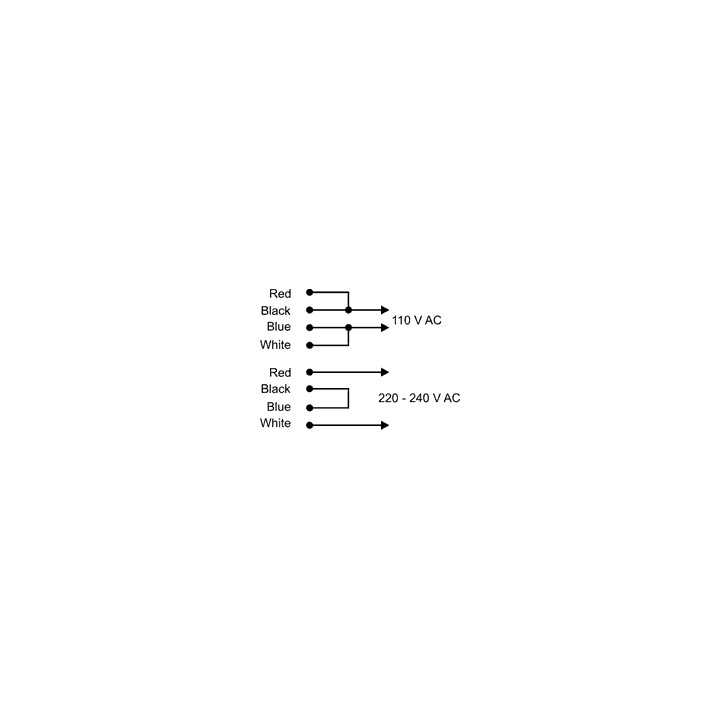

Terminale cablu x4
Temperatura de lucru -10...70°C
Lungime cablu 0,3m
Clasa inflamabilitate
ECE R-118:
This regulation applies to fire testing of materials used in the interiors of motor vehicles, such as upholstery, floor coverings, etc.

UL94:
This standard is used to assess the flammability of plastic materials used in various industries, including the electronics, automotive and construction sectors.
UL94V-0

Presiune statica 9,65mm H2O
Dimensiune conductor 24AWG
Tensiune alimentare 115/230V AC.
