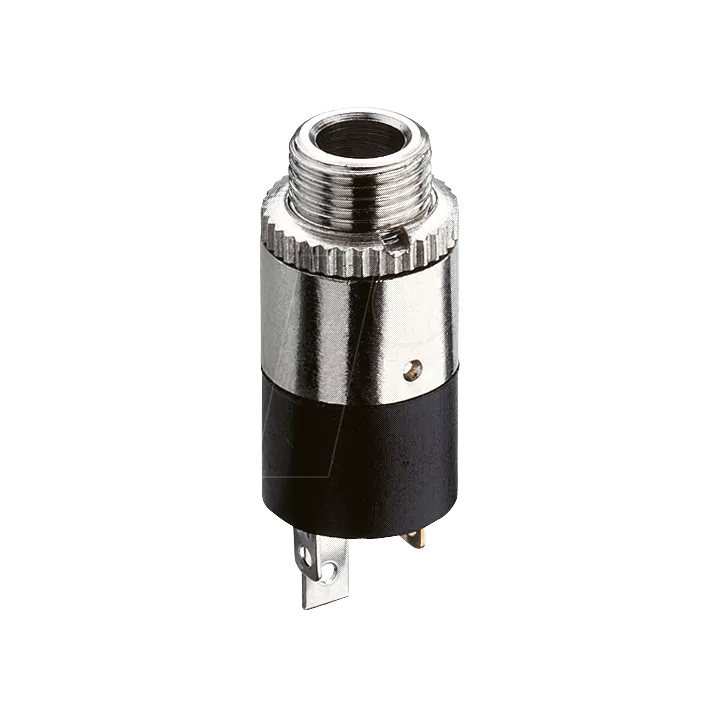

Conector jack stereo mama 3.5 mm de sasiu cu piulita Lumberg

Conector audio jack stereo mama 3.5mm de sasiu cu piulita, marca LUMBERG.

• Priza pentru panou jack (cuplaj montat pe panou)

• 3,5 mm

• 3 pini / stereo

• Cu ochiuri de lipit

• Pentru montare pe panou

Conexiune 1: 3,5mm stereo mama

Diametru de contact: 3,5mm

Culoare: Argintiu

Material carcasa: Metal

Ambalaj Bulk .

Conexiune 1 Jack stereo de 3,5 mm Mama .

Culoare Negru .

Diametru contact 3.5 Milimetru mm

Material carcasa Metal .

Montare Lipire .

Stereo / Mono Stereo .

Tip Priza .

General

Tip Priza panou Jack

Model KLB

Proiectat Stereo

Numărul poli 3

Material Placat cu nichel

Tehnologie Cu ochi de lipit

Temperatur max.-20 ... +70

Culoare Argintiu / negru

Specificații

interfeţe

Conexiune 3,5 mm

Valori electrice

Aprobare Conform JIS C 6560 JC35J3A

Limita de încărcare 0,5 A / 34 V

Jack chassis socket acc. to JIS C 6560 JC35J3A, 3.5 mm, 3 poles/stereo, with solder eyes, for back side mounting

1. Temperature range -20 °C/+70 °C

2. Materials

Insulating body PBT GF, V0 according to UL 94

Contact Cu alloy, nickeled

Cu alloy, gilded

Housing CuZn, nickeled

Nut (can be delivered separately) CuZn, nickeled

3. Mechanical data

Insertion force 5–20 N

Withdrawal force 4–20 N

Mating cycles ≥ 5000

Mating with jack plugs 1532 01, KLS 40, KLS 41, KLS 44, WKLS 40

4. Electrical data

Contact resistance ≤ 50 mΩ

Rated current 1 A

Rated voltage 34 V AC/DC

Test voltage 500 V/60 s

Insulation resistance ≥ 100 MΩ
