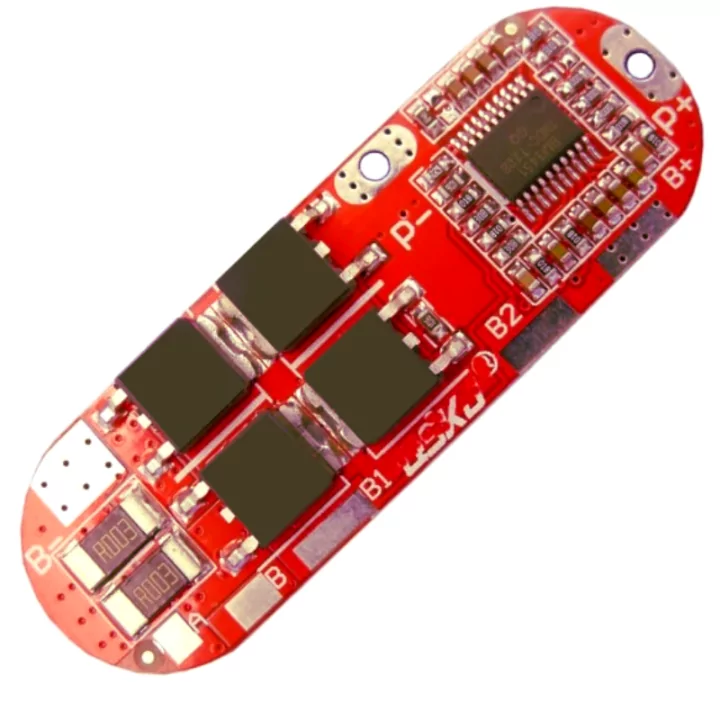

Modul protectie incarcare 5x 18650 25A Balansat

Modul protectie incarcare 5x 18650 25A Balasnsat, incarca fiecare celula in parte.
Tensiune maxima de alimenatre : 21V ± 0.05V
Tensiune minima de descarcare: 2.72-2.88V ± 0.05V
Curent continuu maxim de incarcare 25A / descarcare: 25A
Temperatura de lucru: -40 - +50 ℃
- protectie la scurtcircuit si supra-curent pt 5x18650
Tensiune de incarcare: 4.23-4.28V ± 0.05V.

Feature:
1:FOR Li-POLYMER LiMnO Protect Parameter(3.6V/3.7V)
2:Single Cell overcharge protect voltage: 4.23 - 4.28V
3:Single Cell overcharge rotect recover voltage: 4.08 - 4.18
4:overcharge protect delay: 0.5 - 1.5S
5:Single Cell over-discharge protect voltage: 2.72 - 2.88V
6:Single Cell over-discharge rotect recover voltage: 2.9 - 3.1V
7:overcharge protect current: 60A
8:over-discharge protect current: 60A
9:over-discharge protectdelay: 0.5 - 1.5S
10:temperature protect: YES
11:disconnect protect: YES
12:shortage protect: YES
13:shortage delay: 100 - 600μS
14:shortage protect recover: YES
15:Charging current: 25A
16:discharging current: 25A

- Balanced - incarca fiecare celula in parte.
